The new outdoor box presents itself in a high-quality and stylish way thanks to its smooth surfaces and flawless finish. The innovative push-fit system allows installation in less than 20 minutes. Whether on the terrace, the balcony or in the yard - the design fits perfectly into any environment.
for levelling
Standard Equipment: 4 pcs.
(lock not included)
Customer service is our top priority. With the help of our product advisers, you will get a quick and easy answer to your question. Expert personnel are available for you on all working days.
Of course - please contact your dealer in Switzerland directly to place your order.
A foundation must be erected for the Storage Sheds and the Equipment Locker. Please refer to our foundation tips.
A level, solid hard surface is required for the HighBoard as well as for the Romeo Patio Locker. These products must be anchored to this hard surface with the screws and dowels supplied.
The outdoor boxes (LeisureTime Box, LoungeBox and StyleBox) must also be installed on a level, solid surface. These products do not need to be secured to the ground.
This depends on a few factors:
Because we have years of experience, however, we can give guideline values. Please note that these estimates relate purely to the time taken for the work. Please read the assembly manual beforehand, including all notices.
Europa Storage Shed: | 3 to 6 hours (depending on size) |
HighLine/AvantGarde Storage Shed: | 5 to 8 hours (depending on size) |
HighLine Side Canopy: | 4 hours |
Equipment Locker: | 2 to 3 hours |
HighBoard: | 1 to 2 hours |
Romeo Patio Locker: | 2 to 3 hours |
LoungeBox: | 1 to 2 hours |
Alex: | 0.5 to 2 hours |
StyleBox: | 20 minutes |
LeisureTime Box: | 0.5 to 2 hours |
SmartBasePLUS Foundation: | 3 to 5 hours (depending on size) |
No specific specialist skills are required for assembly. A detailed assembly manual is supplied with our products.
Safety advice for each product can be found on the opening pages of the assembly manual.
Basically:
Keep all small parts or packaging materials supplied away from small children during assembly. Some components have sharp edges or protrude. This should be borne in mind when assembling the product and during daily use. Gloves are included and can be used if necessary.
Note that relatively high temperatures may develop in the storage shed (heat generation similar to that in a car). Find out the storage conditions for the products stored in the storage shed from the respective manufacturers.
Biohort products need very little care due to the high-quality materials used and careful workmanship. Simply lubricate the lock and hinges every year. A high-pressure cleaner can be used (maintain a distance of at least 3.9" between the lance and the lacquer. Do not use a steam cleaner. Max. pressure approximately 1160 psi).
The gutter should be cleaned several times a year, to ensure optimum drainage. If the gutter is blocked, it may overflow. No liability can be accepted for any resultant damage.
IMPORTANT: Sea air/ambient air containing salt water and/or salt, aggressive and abrasive cleaning agents, road salt, fertilisers, fresh concrete, screed materials and other chemical substances (never store this type of product in the open) can attack the lacquer and zinc surface, thereby leading to corrosion. Warranty claims are no longer valid in such cases.
LeisureTime Box/LoungeBox:
4–6 plastic feet are mounted depending on the size of the storage box. These are not height-adjustable.
StyleBox:
The adjustable feet are height-adjustable from 0.4" to 1.1".
HighBoard:
The height of both feet can be adjusted up to 0.7" on the front left and right. As the floor panel should rest entirely on the hard surface, feet height can be adjusted only for precise alignment.
Romeo Patio Locker:
The feet can be adjusted by up to 0.9" on the inside.
No, the electric drive can only be mounted on the drive support on the left (when standing in front of the Pergola). The drive support can be installed at the rear or front.
It is not intended for the Pergola to be mounted directly next to a house wall. It may be placed next to it, but all 4 uprights must be attached to the foundation. Please note that all of the uprights are designed with rainwater drainage.
The Sun Screen consists of a polyester/PVC (30/70%) fabric with 5% openness and a thickness of 0.57 mm.
We strongly advise against the cutting or shortening of the LED strip, as this would result in a loss of protection against moisture.
To re-establish the connection between the remote control and the control unit, the power supply must be disconnected. The power supply may then be reconnected after approximately 1 minute. From this point on, there is a 10 second window to pair the remote control. To do so, press and hold the remote control for 3 seconds during these 10 seconds. If the pairing does not work, unplug the control unit again for 1 minute and repeat the above instructions.
From the time the power is supplied during the initial commissioning, there is a 10-second time window to pair the remote control with the control unit . During this time, the remote control must be pressed for 3 seconds. If the pairing does not work, the control unit must be disconnected from the power supply for 1 minute. Then the above instructions shall be repeated.
Biohort colors do not correspond to any RAL number but some of them share similar features to RAL numbers. We recommend that you view the original color samples at our dealers.
White | This color is not similar to a RAL color |
Green | Similar to RAL 6005 |
Metallic quartz gray | similar to DB 702, there is no similarity to a RAL colour |
Metallic silver | similar to DB 701, there is no similarity to a RAL colour |
Metallic dark gray | similar to DB 703, there is no similarity to a RAL colour |
Gray white (interior color) | Similar to RAL 9002 |
Metallic bronze | This color is not similar to an RAL number |
LeisureTime Box/LoungeBox/StyleBox:
The floor of these outdoor boxes can withstand an even load of 44 lbs. We recommend placing an XPS hard foam panel with a thickness of 1" underneath the box in order to store heavier objects (inside the adjustable feet).
HighBoard/Patio Locker:
These storage boxes are delivered with a base plate underlay. A full surface load of up to 44 lbs can therefore be applied.
Please note that Biohort storage boxes such as the LeisureTime Box, Romeo Patio Locker, HighBoard, StyleBox and LoungeBox offer secure storage against driving rain. However, there are ventilation slits for air circulation. Seat covers/cushions/blankets absorb any humidity and should therefore not be stored in the outdoor boxes in winter due to the risk of mould stains.
Biohort products can withstand the following surface loads when applied evenly:
Highline, AvantGarde and Europa Storage Sheds, Equipment Locker: 31 psf
HighBoard, LoungeBox, LeisureTime Box, Romeo, Alex, StyleBox: 66 lbs.
The storage boxes are not delivered with castors. However, if you would like to fit castors to the boxes, furniture castors can be attached to a base plate and the box fitted on top. Please note that most of our products must be secured to a base or subsurface. Biohort cannot accept liability for any damage caused by insufficiently secured products.
During the winter, it can generally be assumed that the temperature inside the product will equate to the outside temperature as there is no insulation.
Biohort products can heat up on exposure to prolonged sunlight in the same way as cars. Regular ventilation is required in this respect in order to regulate the temperature.
Biohort products do not emit any sounds on exposure to cold and heat as the steel plate has a very low material expansion coefficient (considerably lower than aluminium, plastic or concrete, etc.).

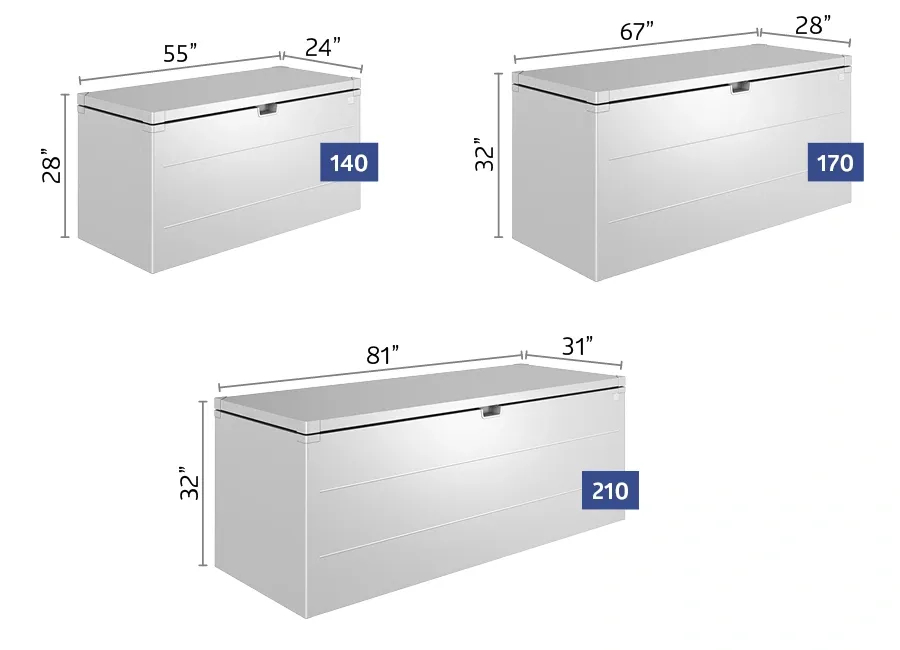

Size | Exterior dimensions | Interior dimensions | Weight | Volume | EAN code met. silver | EAN code met. quartz gray | EAN code met. dark gray |
---|---|---|---|---|---|---|---|
140 | 55.1 x 23.6 x 28 | 50.8 x 19.3 x 24.8 | 94.4 | 105.7 | 9003414 19830 2 | 9003414 19832 6 | 9003414 19831 9 |
170 | 66.9 x 27.6 x 31.9 | 62.6 x 23.2 x 28.7 | 127.2 | 181 | 9003414 19833 3 | 9003414 19835 7 | 9003414 19834 0 |

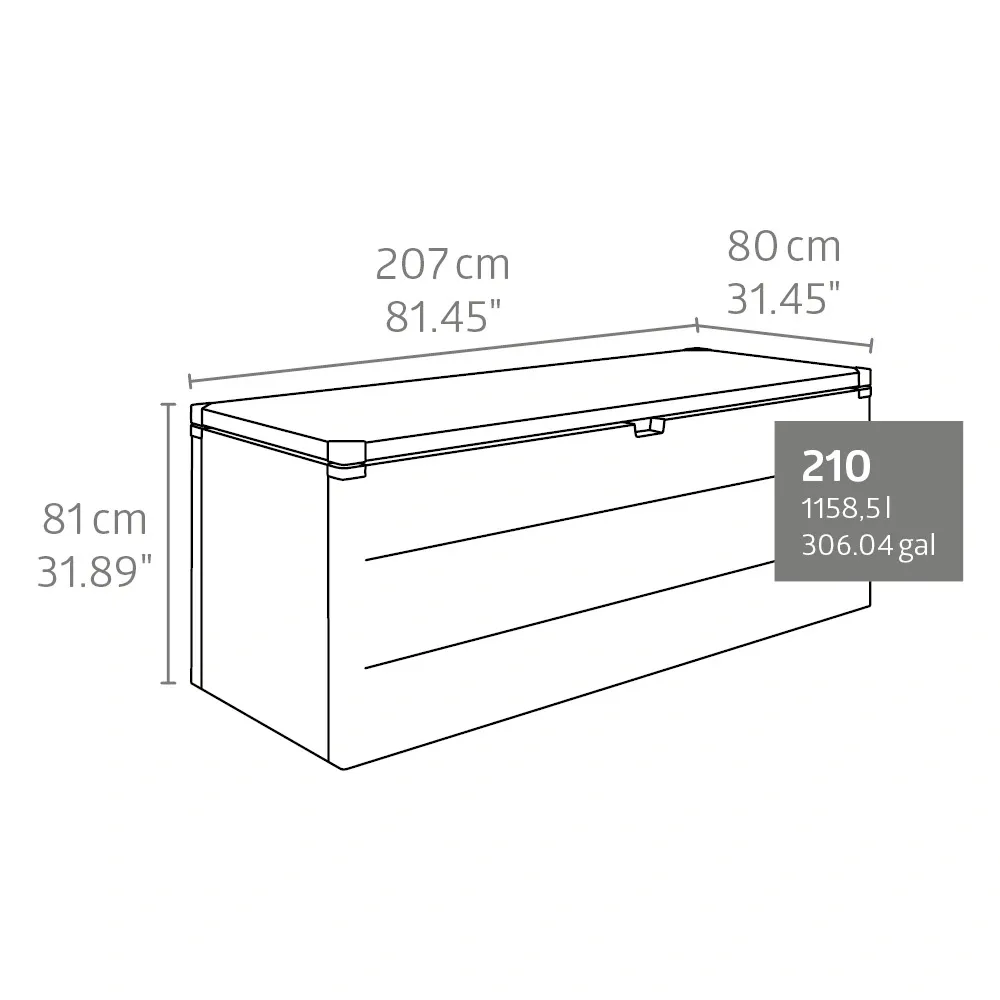

210 | 81.5 x 31.5 x 31.9 | 77.2 x 27.2 x 28.7 | 161.8 | 261.6 | 9003414 19836 4 | 9003414 19838 8 | 9003414 19837 1 |
Packed in two boxes, easily understandable assembly manual included.
