HighLine
Stylish Metal Storage Shed with Flat Roof
Quantity:
from $ 8,499.00
excl. tax, price valid in US
- Modern flat roof with acrylic glass panel for optimal light incidence
- Double the sheet steel thickness compared to low-cost providers
- Optional side canopy available
- Maintenance-free for life - 20 Years limited guarantee!
- Overview
- Colors & Sizes
- Standard Equipment
- Accessories
- Service
- Technical Data
- Product Enquiry
Advantages
Functionality
- 360° acrylic glass panels provide sufficient light inside from all sides
- Integrated gutter with a connection for a 1 1/4" hose
- Gutter with integrated leaf traps on both sides
- Comfortable door opening with gas spring
Security
- 3-way locking mechanism complete with stainless steel door handle
- Robust roof construction for a snow load of up to 31 psf
- Storm-proof up to wind force 12 (according to the Beaufort Scale: hurricane)*
* with professional assembly and anchoring
Quality at its best
- Top quality materials: galvanised, polyamide enamel coated steel plate, screws and hinges made of stainless steel
- Maintenance-free for life
- Extensive range of standard equipment
The HighLine® Storage Shed meets the highest standards
Sophisticated industrial design in an impressive form: the modern flat roof and the integrated all-around skylight give the HighLine® strong accents. The 3-way locking mechanism with a robust cylinder lock ensures optimum security. The opening and closing of the door works semi-automatically with the help of a gas spring. The HighLine® storage shed is entirely maintenance-free!
Colors
The interior of the HighLine® Storage Shed is always gray white and the roof surface is always metallic quartz gray!

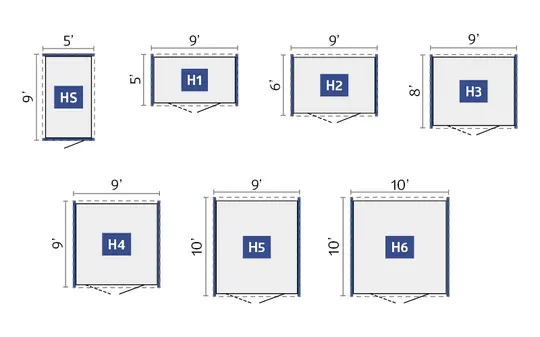

Sizes (rounded sizes, exterior dimensions incl. roof overhang)
The Highline® Storage Shed is available in the following sizes.
Door opening:
- Standard door (right door hinge): 29.9" x 71.6" (W x H)
- Double doors: 61" x 71.6" (W x H)
Stainless steel door handle
- Complete with standard cylinder
- 3-way locking mechanism prevents unwanted entry
- Insurance cover through home insurance policy
- With spare key
- The door construction is extremely robust.
Gas spring
- Provides assistance when opening and closing the door
- Holds the door open or closed
Gutters with integrated leaf traps
With hose connection
Ventilation slots
Ensure adequate air circulation
Acrylic glass skylight
The 360° acrylic glass panels ensure adequate light penetration.
Shelves / support rails
Comprising two shelves (length: 9.6", width: 28.3") and two support rails.
- Made from galvanised steel plate
- Max. load 33 lbs per shelf
- Easy to retrofit
Additional shelves and support rails are also available separately as accessories.
Tool hangers
Designed to hang up spades, rakes and garden hoses, etc.
Standard equipment: 4 pcs.
Additional tool hangers are available separately as accessories.
Tool holder
- On the inside of the door panel
- Max. five tool holders per door panel
Standard equipment: 2 pcs.
Additional tool holders are also available separately as accessories.
Enjoy the benefits of the comprehensive Biohort service offering
Product advice
Customer service is our top priority. With the help of our product advisers, you will get a quick and easy answer to your question. Expert personnel are available for you on all working days.
Exterior dimensions* HighLine® with double door | Interior dimensions W x L x H (in) | Foundation dimensions W x L (in) | Weight (lbs) | EAN code |
|---|---|---|---|---|
| 123.7 x 123.7 x 87 | 115 x 115 x 82.7 | 116.9 x 116.9 | 828.5 | 9003414 84079 9 |
* incl. roof overhang, ** highest point
Packed in seven to eleven boxes, photo-illustrated assembly manual included
Detailed dimensions of the Biohort HighLine® Storage Shed and side canopy
Letters A-P in the following table refer to the sketches above.
| Dimensions (size in) | H6 | |
|---|---|---|
| Width of Storage Shed (without roof overhang) | A | 115.7 |
| Length of Storage Shed (without roof overhang) | B | 115.7 |
| Height of Storage Shed up to roof flashing | C | 82.5 |
| Height of roof flashing | D | 4.9 |
| Overall height of Storage Shed | E | 87.4 |
| Clearance - Width | F | 29.9 |
| Clearance - Width (optional 2nd door) | F | 61.4 |
| Clearance - Height | G | 71.7 |
| Dimensions (Size in) | H6 | |
|---|---|---|
| Width of right side | H | 20.1 |
| Width of left side | J | 65.7 |
| Width of roof | K | 124 |
| Width of roof with side canopy | K1 | S: 179.1 L: 231.5 |
| Length of roof | L | 124 |
| Required door space on opening | M | 31.5 |
| Width of Storage Shed incl. corner profile (without roof overhang) | N | 116.9 |
| Space required for rainwater downpipe incl. outlet elbow (optional) | P | 3.5 |
Are you interested in the HighLine Storage Shed?
We would be delighted to talk to you and answer any questions. We look forward to your enquiry!
